This is how an LTE Macbook would work

LTE MacBook

Rumors of a Macbook with cellular connectivity have been a thing since before macOS was a twinkle in Tim Cook’s eye. Whether or not a Macbook with LTE is actually coming, it’s clearly a project Apple is thinking about, as evidenced by new patent filings.

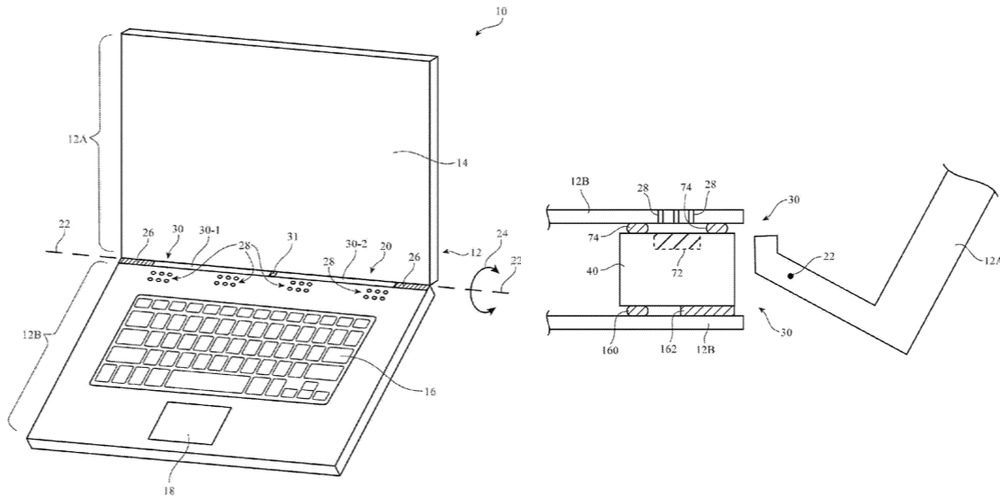

Documents uncovered by Patently Apple show a patent for a unibody aluminum Macbook with something called “Isolated Cavity Antennas,” a cunning way of fitting cellular antennas into an all-metal laptop.

DON’T MISS: Video: The 15 best new features in iOS 10 beta 3

The patent was filed last year, but only granted and published by the USPTO recently. It describes a way of overcoming a constant problem with all-metal laptops: how to get radio signals for Wi-Fi, Bluetooth, GPS, NFC or cellular connections in and out of the device.

Apple’s solution is to use the gap between the main and lid sections of a device:

A slot-shaped opening may separate the upper and lower housing portions. The slot-shaped opening may be present both when the lid is open and when the lid is closed. A flexible printed circuit with ground traces may bisect the slot-shaped opening to form first and second slots.

Cavity antennas may be aligned with the slots, which serve as apertures for the antennas. Each cavity antenna may include a hollow carrier with a pair of speakers. The speakers may have ports that emit sound through aligned openings in the lower housing. Conductive gaskets surrounding the ports may acoustically seal the speaker ports while shorting the cavity antennas to the lower housing.

Through one clever design, Apple is able to incorporate antennas for 2.4 and 5GHz Wi-Fi, Bluetooth, NFC, GPS and cellular, and also build in speakers.

Of course, a patent is just a hypothetical way of possibly building something, at some indeterminate point in the future. It doesn’t mean Apple is going to build in LTE connectivity any time soon.

But it would make sense. Apple is slowly killing the interchangeable SIM card with the Apple SIM; cellular data, and particularly adding an extra line to an existing account is getting cheap; and the new MacBook, with thin form factor and long battery life, is the perfect laptop for adding cellular connectivity.
